A0014993PA | PRESTOLITE LEECE NEVILLE | ALTERNATOR 12V 270 A

Alternatywy A Zastosowanie Z Stosowany w S Referencje R Dostępny? ? 608670706 Zamów Zamów 24-48H

Specyfikacja produktu

Numer towaru A0014993PA
Numer sprzeda??y 4993PA
Numer serii 4800-4900
Notatka THIS IS A MULTIPOWER (TM) ALTERNATOR. THE 4993PA REPLACES THE 4991PA AND 4992PA.
Napi?cie (V) 12
Amper 270
Typ mocowania PAD

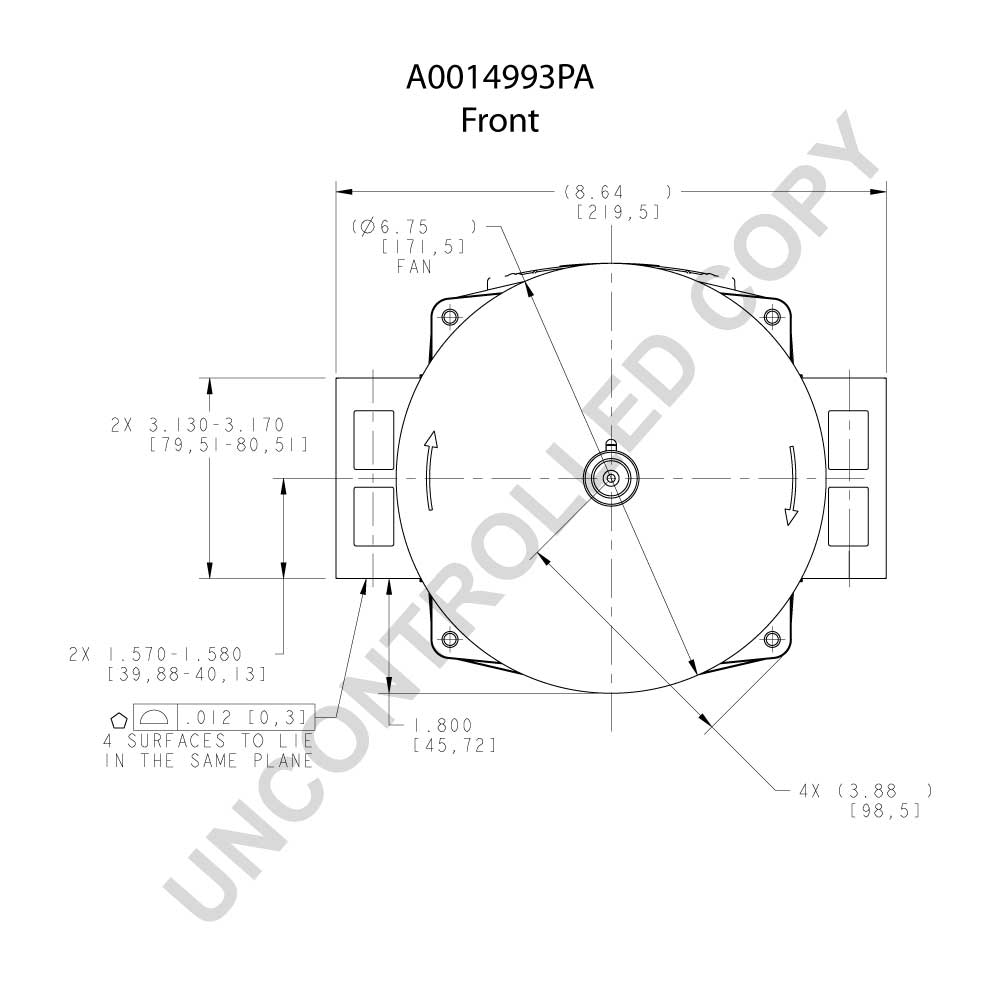

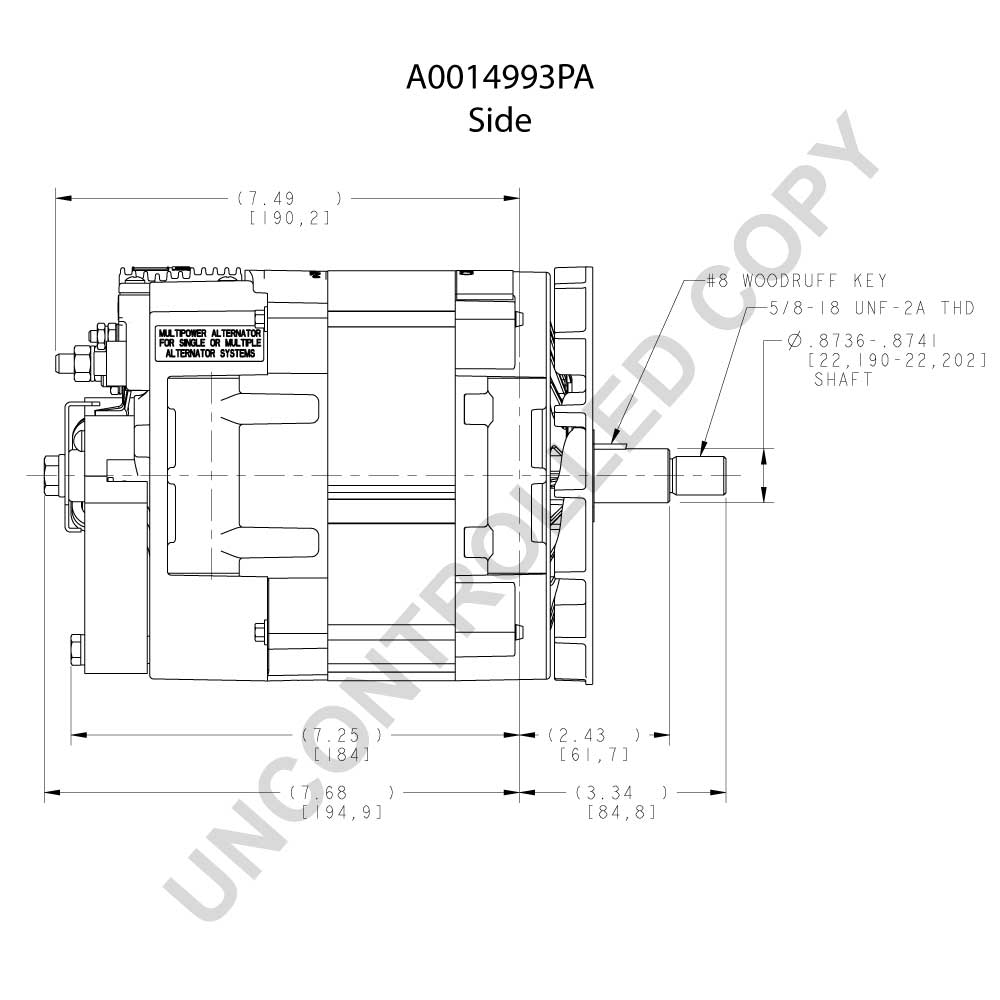

Wymiary w INCHES
Obroty Zgodnie z wskaz??wkami zegara
Housing coating RAW
UL Approved No
Rozmiar plusowej ??ruby 5/16-18
Rozmiar minusowej ??ruby 3/8-16
Lokalizacja prostownika Wewn?trzna
Wymiar o??ki 7/8 INCH
Excitation type Ignition Excite
Lokalizacja regulatora Integralny
Numer regulatora R240104104
Diody wzbudzenia No
Ko??o pasowe No
Lamp driver No
Nastawny (regulowany) regulator No
Remote sense No
Smart check No
Batteryless No

Biuletyny techniczne

4000 Series Maintenance Manual Service manual for the 4000 series alternators with internal regulators and rectifiers
TSM1001_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.8 mb)
4000 Series Maintenance Manual - French Language Version French version of the 4000 Series internal regulator and rectified alternators service manual.
TSM1001_FR_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.9 mb)
4000 Series Pad Mount Alternators Hardware Hardware kit for the 4000 Series Pad Mount alternators.
TSB-3005_4000PAD-hardware.pdf (1.6 mb)
Brush Inspection and Replacement Procedure Brush inspection and replacement procedure for 2500, 2800, 4800 and 4900 series alternators
TSB-1061_Brush_Insection_and_Replacement.pdf (898 kb)
Conversion to Multi-Power System This technical service bulletin covers the conversion from the 4991PA and 4992PA to the Multipower System alternator.
TSB-1050_Multi-Power-System_conversion.pdf (1.6 mb)
Pad Type Mounting Recommendations Recommended mounting and bracket design for pad mount alternators.
TSB-1049_Pad_Type_Mounting_Recommendations.pdf (519 kb)
Troubleshooting guide - MultiPower Alternators Trouble shooting on the 4993PA, 4974PA, 4742JB alternators.
TSB-1056_Troubleshooting-4993-4974-4742.pdf (295 kb)
Wire Identification Chart For R240 Regulators Wire Identification chart for R240 Regulators for 4800-4900 series alternators
TSB-1134_R240_Regulator_Wire_ID_Chart.pdf (85 kb)

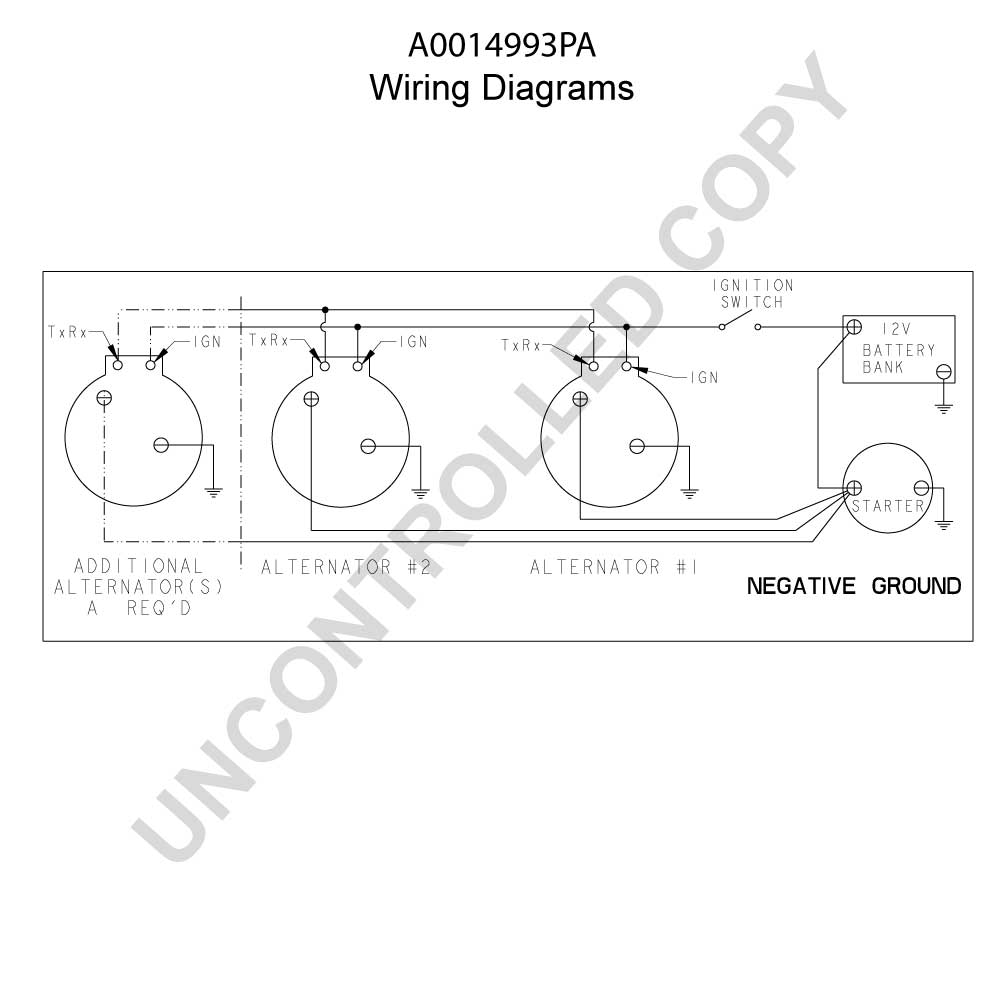

Wiring Diagram - MultiPower Alternators Wiring diagram for 4993PA, 4974PA, 4742JB installation.
TSB-1055_Wiring_dia-4993-4974-4742.pdf (151 kb)

Podział części

4000 Series Pad Mount Service Parts List Service parts list for the 4000 series alternator pad mount models.
SP1009-4000-Pad-parts-list-web.pdf (3 mb)

Literatura

4000 Series High Amp Alternators 4000 Series High Amp alternators for all applications.
FL1165_4000_Series_Alternator_Flyer.pdf (645 kb)
4000 Series High Amp Fire Truck Alts 4000 Series high amp alternators for fire truck applications
FL1162_4000_Series_FireTruck_Alternator_Flyer.pdf (1.7 mb)
Multi-Power Alternator System New Multi-Power Alternator System that allows use of multiple alternators utilizing the new Multi-Power Regulator.
PG1011_Multi-Power_System.pdf (582 kb)
