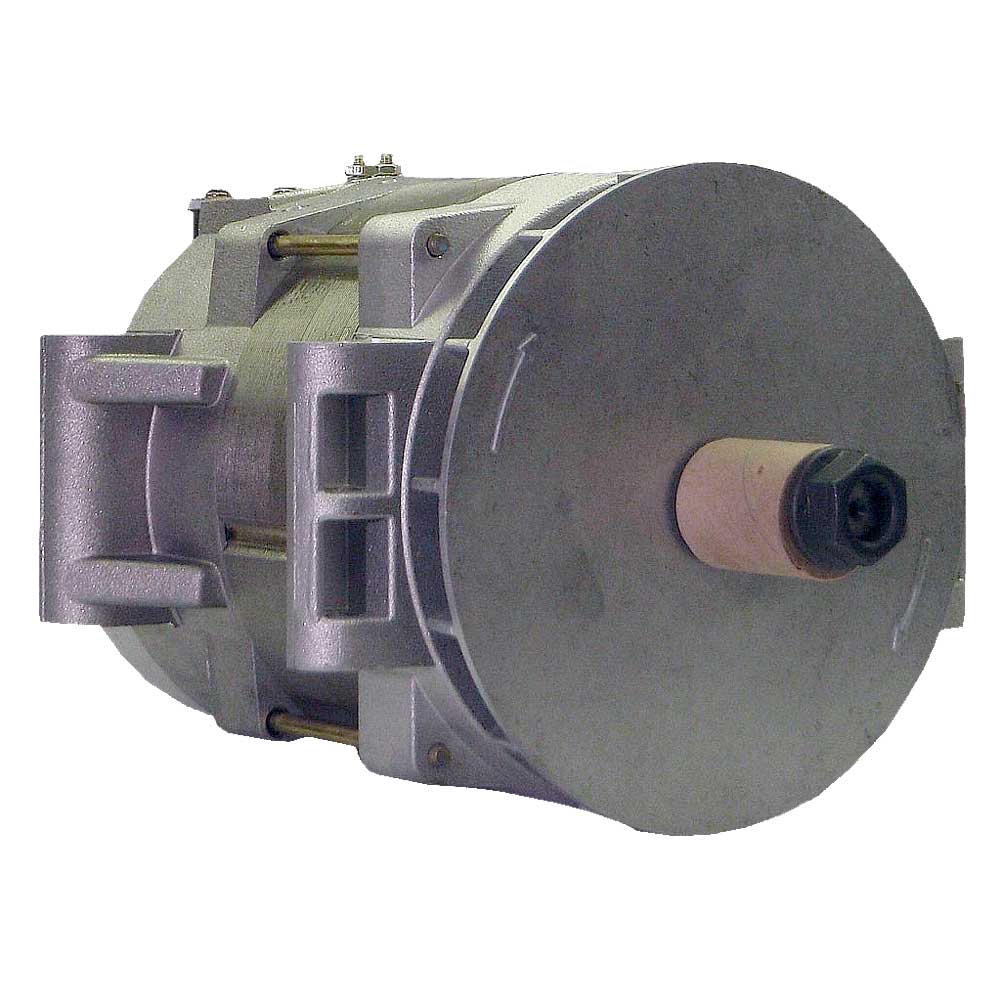

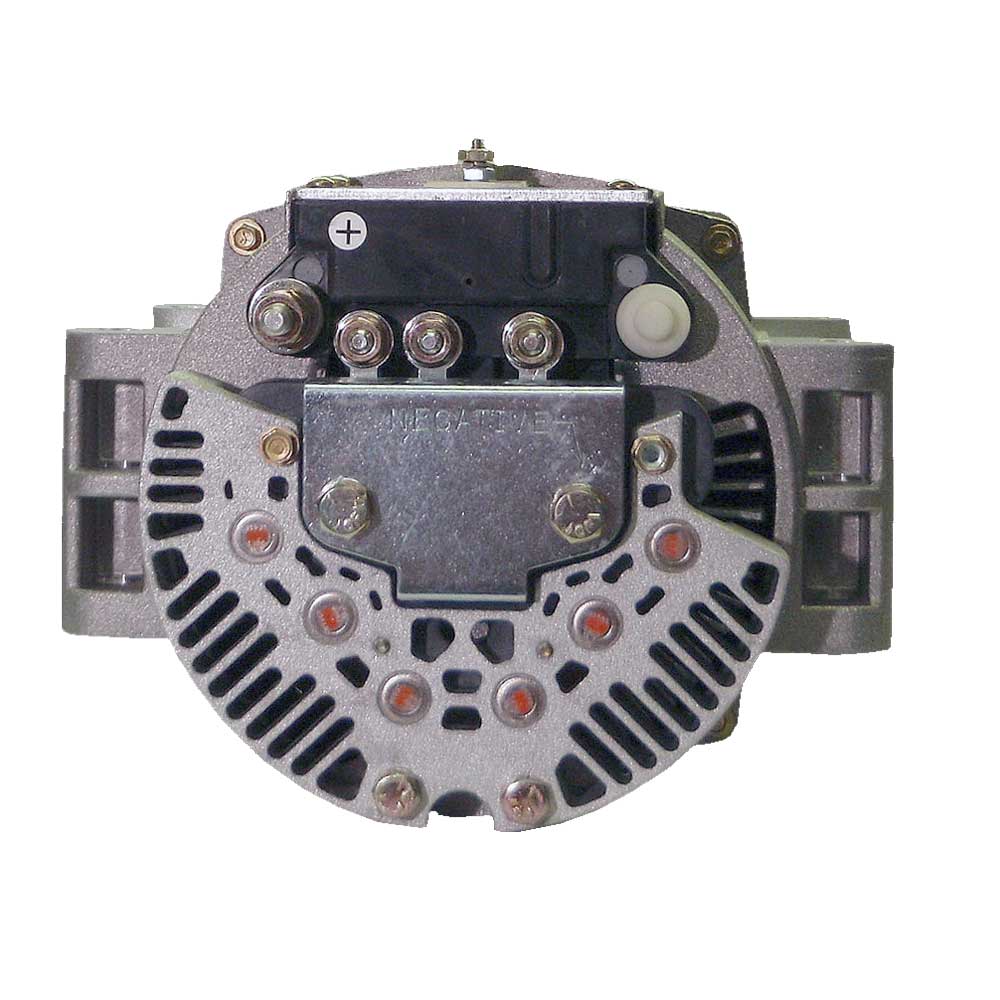

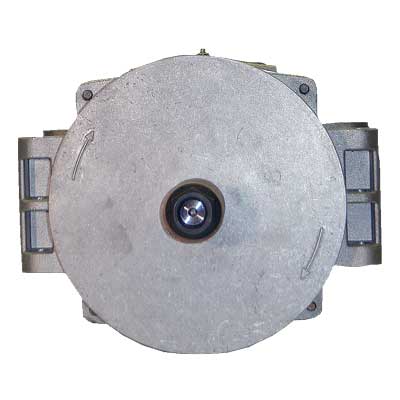

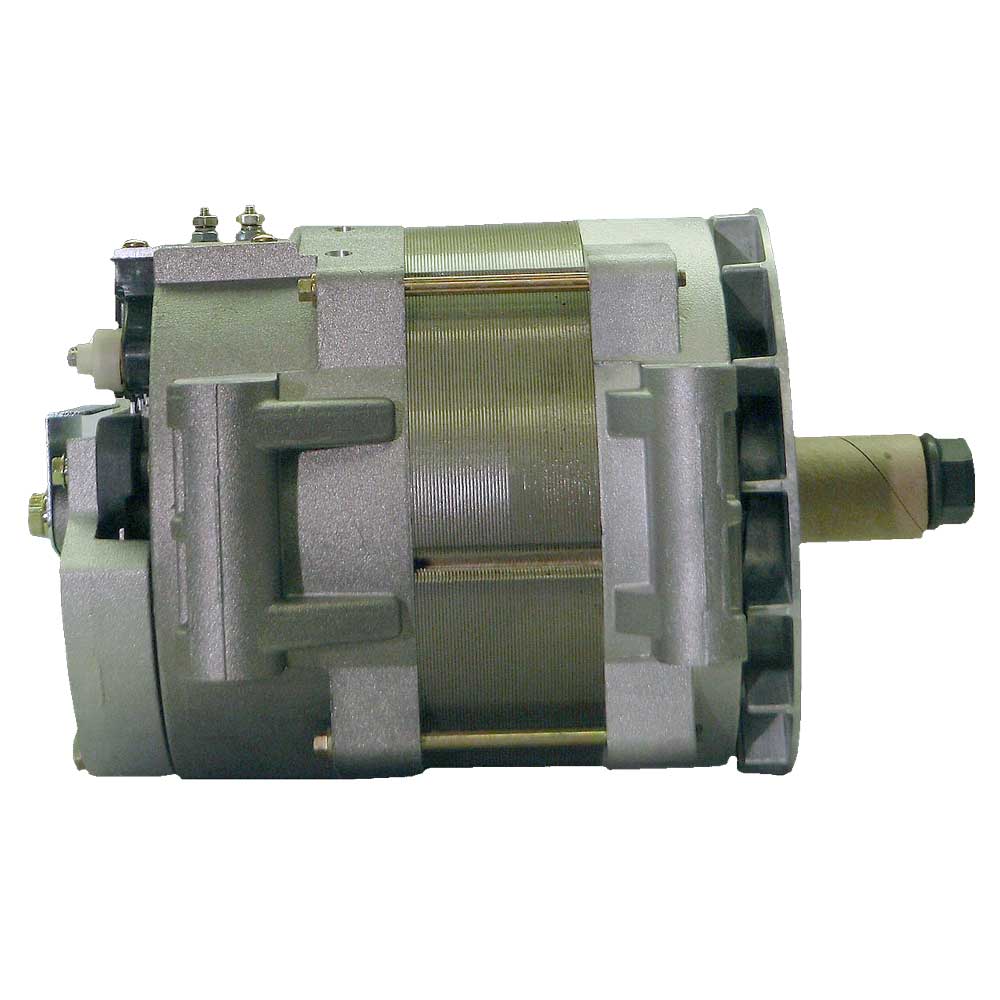

A0014966PAA | PRESTOLITE LEECE NEVILLE | ALTERNATOR

Specyfikacja produktu

Numer towaru A0014966PAA
Numer sprzeda??y 4966PAA
Numer serii 4800-4900
Notatka USE WITH REMOTE MOUNT REGULATOR, -40C TO 110C
Napi?cie (V) 12
Amper 320
Typ mocowania PAD
Wymiary w INCHES
Obroty Zgodnie z wskaz??wkami zegara
Housing coating RAW
UL Approved No
Rozmiar plusowej ??ruby 5/16-18
Rozmiar minusowej ??ruby 5/16-18
Lokalizacja prostownika Wewn?trzna
Wymiar o??ki 7/8 INCH
Excitation type
Lokalizacja regulatora
Numer regulatora
Diody wzbudzenia No
Ko??o pasowe No
Lamp driver No
Nastawny (regulowany) regulator No
Remote sense No
Smart check No
Batteryless No

Biuletyny techniczne

4000 Series Maintenance Manual Service manual for the 4000 series alternators with internal regulators and rectifiers
TSM1001_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.8 mb)
4000 Series Maintenance Manual - French Language Version French version of the 4000 Series internal regulator and rectified alternators service manual.
TSM1001_FR_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.9 mb)
4000 Series Pad Mount Alternators Hardware Hardware kit for the 4000 Series Pad Mount alternators.
TSB-3005_4000PAD-hardware.pdf (1.6 mb)

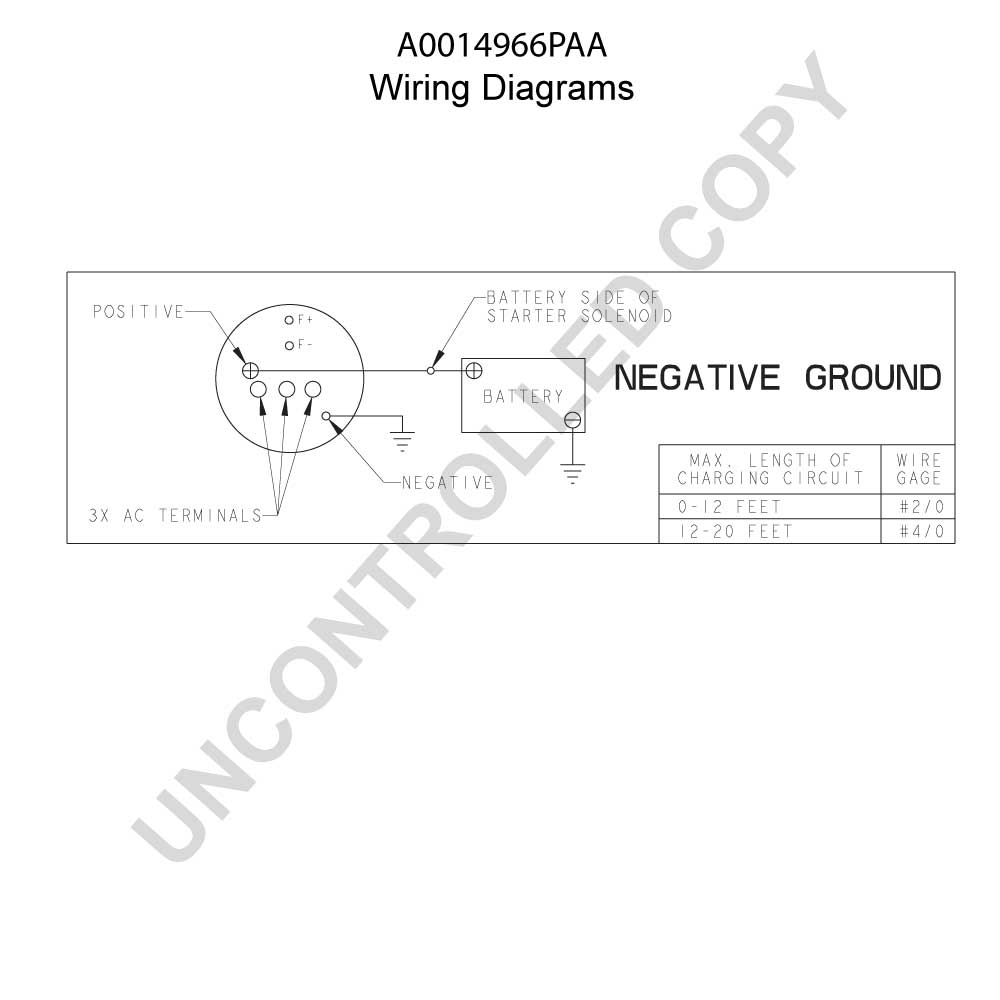

4800 / 4900 AA Series Wiring Diagrams Wiring Diagrams for 4800-4900AA series using the 8RD2041
TSB-1022_Wiring_Diagrams_4800AA_Series.pdf (142 kb)
4900 Series Rear Housing Configurations Through-bolt changes on the 4900 series alternator rear housing configurations.
TSB-1047_4900_T-bolt.pdf (432 kb)
Brush Inspection and Replacement Procedure Brush inspection and replacement procedure for 2500, 2800, 4800 and 4900 series alternators
TSB-1061_Brush_Insection_and_Replacement.pdf (898 kb)
Pad Type Mounting Recommendations Recommended mounting and bracket design for pad mount alternators.
TSB-1049_Pad_Type_Mounting_Recommendations.pdf (519 kb)
Regulator Replacement Procedure Regulator replacement/retrofit procedure for 5078R, 5042R, 6014R and 6026R regulators.
TSB-1144_5078R_5042R_Regulator_Replacement_Procedure.pdf (1.6 mb)
Wire Identification Chart For R240 Regulators Wire Identification chart for R240 Regulators for 4800-4900 series alternators
TSB-1134_R240_Regulator_Wire_ID_Chart.pdf (85 kb)

Podział części

4000 Series Pad Mount Service Parts List Service parts list for the 4000 series alternator pad mount models.
SP1009-4000-Pad-parts-list-web.pdf (3 mb)

Literatura

4000 Series High Amp Alternators 4000 Series High Amp alternators for all applications.
FL1165_4000_Series_Alternator_Flyer.pdf (645 kb)
