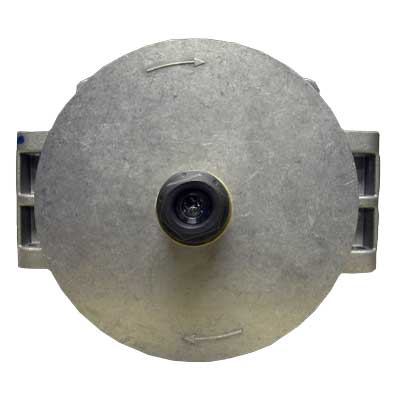

A0014943PGH | PRESTOLITE LEECE NEVILLE | ALTERNATOR

Specyfikacja produktu

Numer towaru A0014943PGH
Numer sprzeda??y 4943PGH
Numer serii 4800-4900
Notatka HEX SHAFT
Napi?cie (V) 12
Amper 185
Typ mocowania PAD
Wymiary w INCHES
Obroty Zgodnie z wskaz??wkami zegara
Housing coating RAW
UL Approved No
Rozmiar plusowej ??ruby 5/16-18
Rozmiar minusowej ??ruby 5/16-18
Lokalizacja prostownika Wewn?trzna
Wymiar o??ki 7/8 INCH
Excitation type
Lokalizacja regulatora Integralny
Numer regulatora R240105747
Diody wzbudzenia No
Ko??o pasowe No
Lamp driver No
Nastawny (regulowany) regulator No
Remote sense No
Smart check No
Batteryless No

Biuletyny techniczne

4000 Series Maintenance Manual Service manual for the 4000 series alternators with internal regulators and rectifiers
TSM1001_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.8 mb)
4000 Series Maintenance Manual - French Language Version French version of the 4000 Series internal regulator and rectified alternators service manual.
TSM1001_FR_4000_Series_Int_Reg_and_Rectifier_Service-Manual.pdf (5.9 mb)
4000 Series Pad Mount Alternators Hardware Hardware kit for the 4000 Series Pad Mount alternators.
TSB-3005_4000PAD-hardware.pdf (1.6 mb)
4900 Series Rear Housing Configurations Through-bolt changes on the 4900 series alternator rear housing configurations.
TSB-1047_4900_T-bolt.pdf (432 kb)
Brush Inspection and Replacement Procedure Brush inspection and replacement procedure for 2500, 2800, 4800 and 4900 series alternators
TSB-1061_Brush_Insection_and_Replacement.pdf (898 kb)
Convert 4000 series alternators to solid lead frames Detailed instructions for converting 4000 series alternators with separate rectifier systems to the new solid lead frame rectifiers.
TSB-1062_4000-series-solid-lead-frame.pdf (2.9 mb)
Pad Type Mounting Recommendations Recommended mounting and bracket design for pad mount alternators.
TSB-1049_Pad_Type_Mounting_Recommendations.pdf (519 kb)
Wire Identification Chart For R240 Regulators Wire Identification chart for R240 Regulators for 4800-4900 series alternators
TSB-1134_R240_Regulator_Wire_ID_Chart.pdf (85 kb)

Podział części

4000 Series Pad Mount Service Parts List Service parts list for the 4000 series alternator pad mount models.
SP1009-4000-Pad-parts-list-web.pdf (3 mb)

Literatura

175 to 185 amp update Updated to 185 amp alternators, vs 175 amp alternators.
FL1083_175Amp_to_185Amp.pdf (870 kb)
4000 Series High Amp Alternators 4000 Series High Amp alternators for all applications.
FL1165_4000_Series_Alternator_Flyer.pdf (645 kb)
4000 Series High Amp Fire Truck Alts 4000 Series high amp alternators for fire truck applications
FL1162_4000_Series_FireTruck_Alternator_Flyer.pdf (1.7 mb)
School Bus Informational Flyer Severe Duty Alternators and Starters that apply to the school bus applications
School_Bus_Application_FL1212.pdf (1.1 mb)
